型號 | 尺寸規格 (dia. x L) |
精度 | Initial ΔP (psi) @ Flow Rate (gpm) |
Chlorine Reduction @ Flow Rate (gpm) |

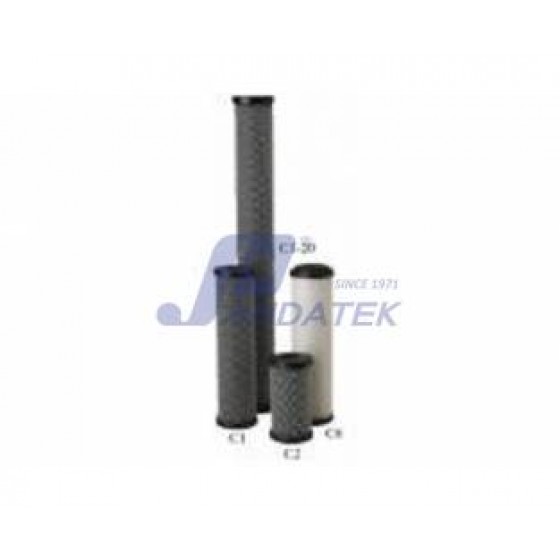

C1 | 2-1/2" x 9-3/4" (64mm x 248 mm) |
5μm | 3.75 psi @ 5 gpm (0.3 bar 18.9 lpm) |
>5000 gal. @ 1 gpm (>18900 L @ 3.8 lpm) |
C2 | 2-1/2" x 4-7/8" (64mm x 124 mm) |
5μm | 5.0 psi @ 2 gpm (0.3 bar 7.6 lpm) |
>2500 gal. @ 0.5 gpm (>9500 L @ 1.9 lpm) |
C8 | 2-5/8" x 9-3/4" (248mm x 67 mm) |
1μm | 4.0 psi @ 5 gpm (0.3 bar 18.9 lpm) |
>7500 gal. @ 1 gpm (>28400 L @ 3.8 lpm) |
C1-20 | 2-1/2" x 20" (64mm x 508mm) |
5μm | 10 psi @ 5 gpm (<1 bar 19 lpm) |
>10000 gal. @ 1 gpm (>38000 L @ 3.8 lpm) |
