Filter Cartridges

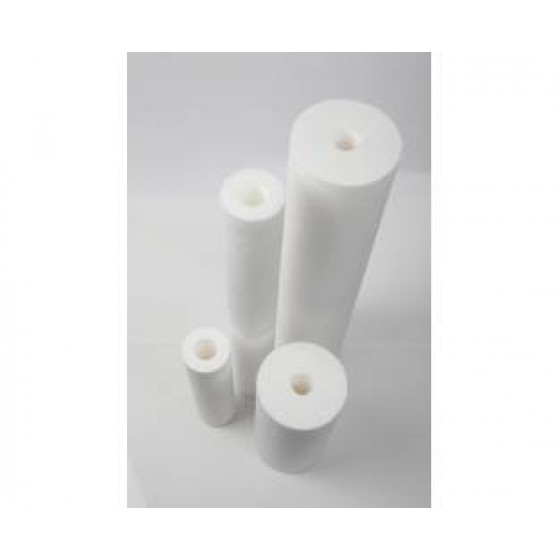

Melt Blown Polypropylene Depth Filter Cartridge
Product Introduction

‧Thermally bonded 100% pure polypropylene.
‧High contaminant holding capacity.
‧Consistent flow rate and superior filtration performance.
‧Will not impart taste, odor or color to water or liquid being filtered
‧Non-migrating media



GENERAL PROPERTIES OF FILTER MEDIA

    RESISTANCE TO
CARTRIDGE MAXIMUM OPERATING TEMP.°F MINERAL ACIDS ORGANIC ACIDS ALKALIES OXIDIZING AGENTS ORGANIC SOLVENTS ANIMAL, PETRO & VEG. OILS

MICRO-
ORGANISMS

Melt-blown Polypropylene 140°F
(60°C)
Good Excellent Excellent Fair Good Excellent Excellent



Model P0.5, P1, P3, P5, P10, P20, P30, P50, P75, P100
Material Polypropylene
Lengths 5, 6, 9.75, 10, 19.5, 20, 29.5, 30, 39, 40, customized lengths
Outer Diameter 2.5 inches Inner Diameter 1 inch
Micro Rating 0.5, 1, 3, 5, 10, 20, 25, 30, 50, 75, 100 μm
End Caps Double Open End , 2-222 Flat, 2-222 Spear, 2-226 Flat, 2-226 Spear
Gasket O-ring Silicone, Viton, EPDM, Buna-N



Nominal O.D: 2½
Nominal I.D: 1"
Maximum recommended flow rate: 5 GPM per 10" length.
Maximum recommended differential pressure:
25 PSIG at ambient temperature 15 PSIG at 140°F (60℃)
