Filter Cartridges

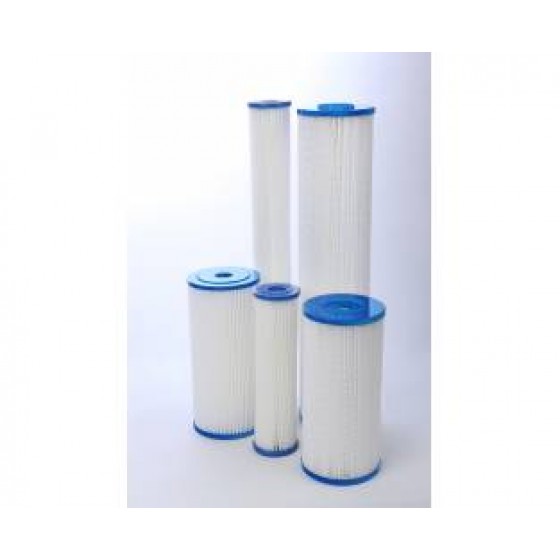

PBE Series Cartridges
Product Introduction

PBE series cartridges are made of polyester cellulose, possessing superior fluid mechanics, strong resistance capability to sun and high heats. This endurable polyester material with various filtering holes are suitable to residential, commercial and industrial uses in filtering water or solvents, particularly good for sea-water’s filtration. It possesses high flow rate, low pressure drop and high loading capacity. With considerable filtering surface (6” square inches as for 10” lengthed cartridge) the cartridge has a long time service life.

The Structure of the cartridges
Pleated cartridges provide large and various filtering surface, possessing maximum loading capacity Filtering media winds around a polypropylene materialed core, resulted in a strong structured cartridge. The cartridge enclosed with pleated polyester cloth, core and end caps forms a unique filtering entity. End caps structure tight, ensuring none by pass.

Characteristics



  • High filtering holes, deep layers, cellulose structure, strong resistance capability, high floating rate
  • Pleated design, high dirt catching ability, long service life
  • Polyester material generally allows repeated and continuous uses
  • Filtering surface: 4~6 square inches (10” cartridge)
  • Low pressure drop, high floating capacity, Long use time
  • Repeated uses, reducing costs
  • Resistant to high heat and good resistant to pressure
  • Effectively filtering sediments in water, sludge and metal rust in liquid

Applications
Water filtering, RO pre-treatment, PCB, plating and other various industries

Specifications


Material Membrane Polyester
End Caps PVC
Exterior Net Polyester
Core Polyester
ID/OD 28mm/69mm
Lengths 10”~40” (254~116mm
Nominal
Micron Ratings
1,5,10,20,30,50,75,100um
Operation Temperature <80℃
Operation Pressure 80psi
Cartridges without exterior net and with customized sizes available



  • Using polyester impregnated with specially-made resin
  • Provides higher wet strength than general cellulose cartridges
  • Minimal unloading and media migration
  • Standard 10” cartridge ─ filtering surface: 6 square inches
  • Standard 20” cartridge ─ filtering surface: 12 square inches
  • 10”BB cartridge with 114mm external diameter ─ 18 square inches
  • 20”BB cartridge with 114mm external diameter ─ 36 square inches
